Energy - saving Super bright LED Flat Panel Lighting for Supermarkets 3 - 24W

Brand Name : Bellaid
Model Number : BLD-PL-S225-18W
Certification : CE/ROHS/FCC/TUV/SAA/C-TICK
Place of Origin : Suzhou ,China
MOQ : 100pcs
Price : negotiation
Payment Terms : T/T, L/C, Western Union,Paypal
Supply Ability : 20,000pcs per month
Delivery Time : 20 working days after received your deposit
Packaging Details : Packed in carton firstly,and then put them on pallet for shipment
Product Name : LED panel light
Input voltage : 100~240/277V AC operation with included LED driver
LED Chip : SMD2835
Lifespan : 40000 Hrs
Installation : recessed
Application : Office, Commercial Lighting, Hotel, School
Wattage : 18W
Lumen Output : 1600-1800Lm
Warranty : 3 Years Warranty
Material Of Body : die-casting aluminum+PC optical lens
Color temperature : 2700-6500K as optional
fire-rate : VO
method : PMW or 0-10v
Contact Now

3w 4W 6w 9w 12w 15w 18w,21w,24W led panel light with ceiling mount for for home , hotel , office,hospital

Product Characteristics:

1, Use imported die-cast aluminum, treated with white paint, which has pressure resistance, wear resistance, corrosion resistance, and good color sustainability.
2, Use imported spread LGP, soft and comfortable lighting, which can avoid glare and protect eyesight.
3, Inserted with smart IC chip, which can be used to control circuit and provide open circuit, short circuit, high-voltage and low-voltage protection; it has steady quality to ensure LED lifetime.


Feature:


1. Use die-casting aluminum alloy as the material of main-body.

2. Use high transparent PMMA/PC as lens, high pure reflector makes sure more light coming out

3. Fashionable &novel looking design, ultrathin aluminum body for easy operating.

4. Excellent heat dissipation performance.

5. Isolated driver, ensure the long life span.

6. Energy-saving and high efficient LED driver.


Specification sheet:


Item NOBLD-PL-S85-3WBLD-PL-S106-4WBLD-PL-S120-6WBLD-PL-S145-9WBLD-PL-S175-12WBLD-PL-S200-15WBLD-PL-S225-18WBLD-PL-S237-21WBLD-PL-S300-24W
Power3W4W6W9W12W15W18W21W24W
LED qty15pcs20pcs30pcs45pcs60pcs75pcs90pcs110pcs120pc
Lumen280LM+/- 10%

380LM

+/-10%

560LM

+/-10%

830LM

+/-10%

1100LM

+/-10%

1450LM

+/-10%

1700LM

+/-10%

1950LM

+/-10%

2200LM

+/-10%

size

85*85*

20mm

106*106*

20mm

120*120*

20mm

145*145*

20mm

175*175*

20mm

200*200*

20mm

225*225*

20mm

237*237*

20mm

300*300

*20mm

Cut-out size

75*75mm

95*95mm120*120mm135*135mm155*155mm182*182mm205*205mm220*220mm273*273mm
Input100-240/277V/50-60HZ
color temp2800-3200K/4000-4500K/6000-6500K
Height20mm
DimmableYes or None
Dimmable method0-10V/Triac
CRI>80
PF>0.9
Effieacy90-96lm/w
Beam angle>120
IP gradeIP40
Life span30000 hour
InstallationRecessed
LED typeSamgsung/Epistar/Lumenmax etc
MaterialAluminum Die Casting,Arcylic PMMA
Warranty years3 years
MOQ100PCS

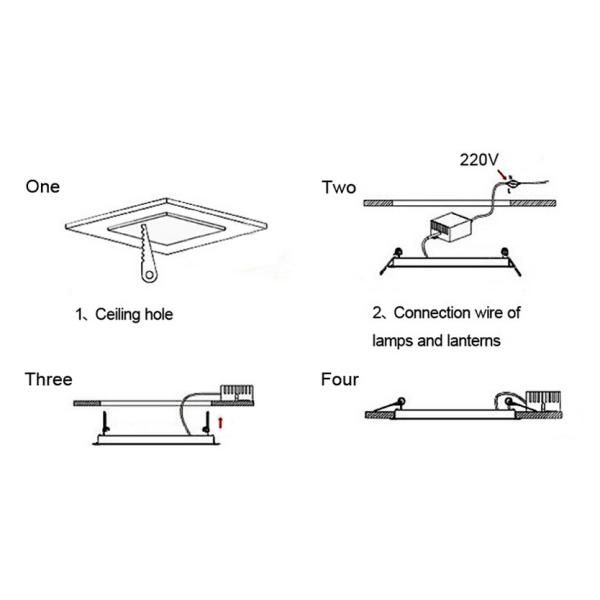

Installation step:


Color temperature for youre refer.


Application:

Office ,Hotel ,Residential ,Restaurant ,Fashion shop and so on.
